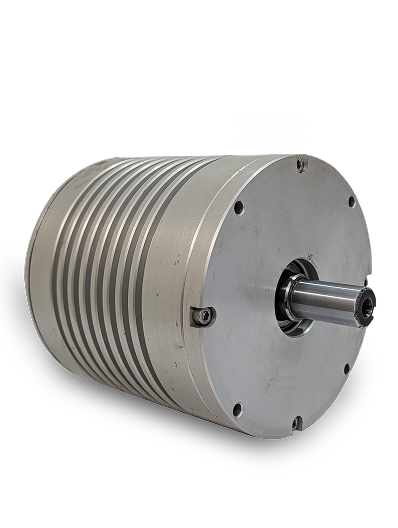

Antarix-RF22
Antarix-RF22
Specifications
Applications:
Electric Scooters, Agricultural Equipments
Technical Specifications
Motor type:
IPMSM Radial Flux
|
|
||
|---|---|---|
|
Rated Voltage (V DC)
|
48
|
72
|
|
Rated Power (kW)
|
2.2
|
2.2
|
|
Peak Power (kW)
|
3.5
|
3.5
|
|
Peak Speed (RPM)
|
3600
|
3600
|
|
Rated Torque (Nm)
|
9
|
10.5
|
|
Peak Torque (Nm)
|
28
|
30
|
|
Peak Efficiency
|
>90%
|
>92%
|
|
Cooling Method
|
Air Cooled
|
Air Cooled
|
|
Mass
|
6.5 kg
|
6.5 kg
|
|
Insulation
|
> 20 MOhm
|
> 20 MOhm
|
|
Sensor Type
|
Enc (hall signals)
|
Enc (hall signals)
|
|
IP Rating
|
IP67
|
IP67
|
|
Communication
Mode
|
CAN / one-line
|
CAN / one-line
|

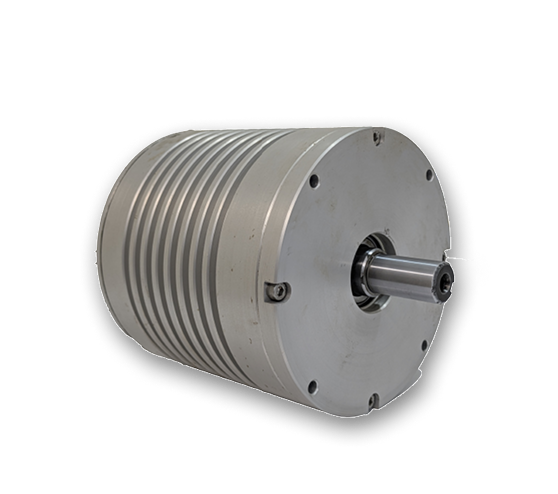

Antarix-RF33
Antarix-RF33
Specifications
Applications:
Electric Scooters, Bikes
Technical Specifications
Motor type:
IPMSM Radial Flux
|
|
|||
|---|---|---|---|
|
Rated Voltage (V DC)
|
48
|
72
|
96
|
|
Rated Power (kW)
|
3.3
|
3.3
|
3
|
|
Peak Power (kW)
|
4.5
|
4.8
|
4.8
|
|
Peak Speed (RPM)
|
3600
|
4000
|
3600
|
|
Rated Torque (Nm)
|
12
|
13
|
19
|
|
Peak Torque (Nm)
|
45
|
45
|
50
|
|
Peak Efficiency
|
>92%
|
>92%
|
>90%
|
|
Cooling Method
|
Air Cooled
|
Air Cooled
|
Air Cooled
|
|
Mass
|
7.7 kg
|
7.7 kg
|
7.7 kg
|
|
Insulation
|
> 20 MOhm
|
> 20 MOhm
|
> 20 MOhm
|
|
Sensor Type
|
Enc (hall signals)
|
Enc (hall signals)
|
Enc (hall signals)
|
|
IP Rating
|
IP67
|
IP67
|
IP67
|
|
Communication
Mode
|
CAN / one-line
|
CAN / one-line
|
CAN / one-line
|

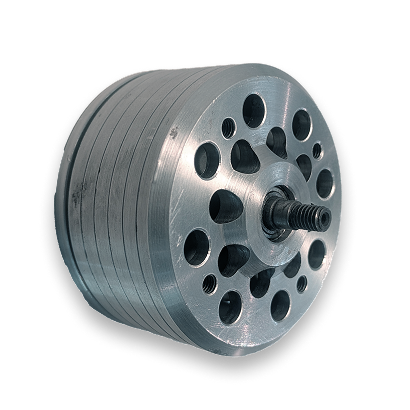

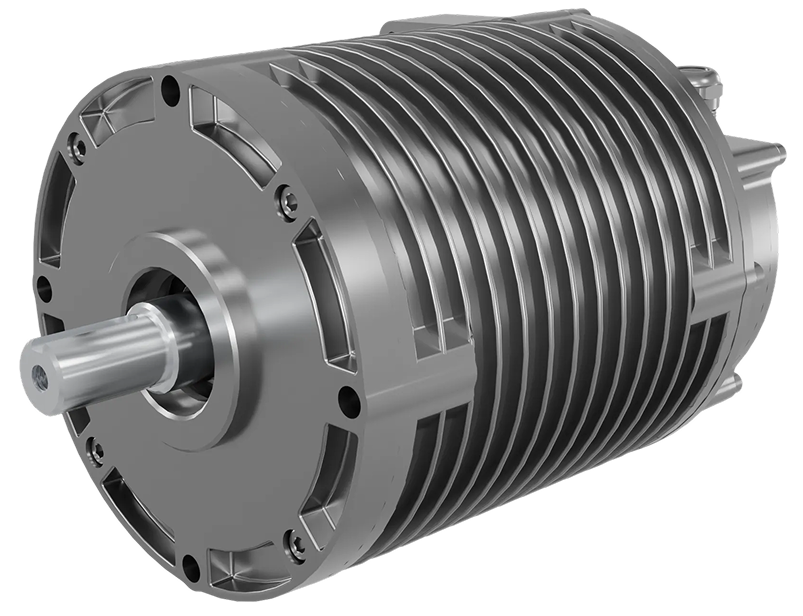

Antarix-RF55
Antarix-RF55
Specifications
Applications:
Electric Scooters, Bikes, L-5 3W, Electric Boats
Technical Specifications
Motor type:
IPMSM Radial Flux
|
|
||
|---|---|---|
|
Rated Voltage (V DC)
|
48
|
72
|
|
Rated Power (kW)
|
5.5
|
5.5
|
|
Peak Power (kW)
|
8
|
8
|
|
Peak Speed (RPM)
|
4000
|
4000
|
|
Rated Torque (Nm)
|
14
|
16
|
|
Peak Torque (Nm)
|
55
|
65
|
|
Peak Efficiency
|
>92%
|
>92%
|
|
Cooling Method
|
Air Cooled
|
Air Cooled
|
|
Mass
|
10.5 kg
|
10.5 kg
|
|
Insulation
|
> 20 MOhm
|
> 20 MOhm
|
|
Sensor Type
|
Enc (hall signals)
|
Enc (hall signals)
|
|
IP Rating
|
IP67
|
IP67
|
|
Communication
Mode
|
CAN / one-line
|
CAN / one-line
|

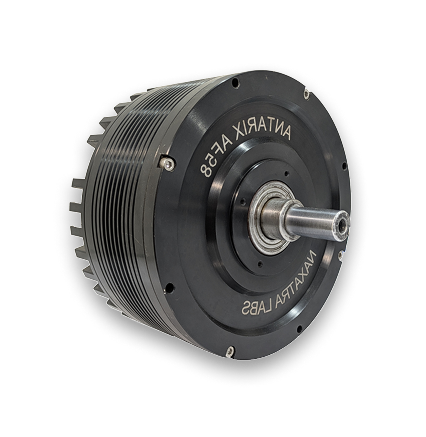

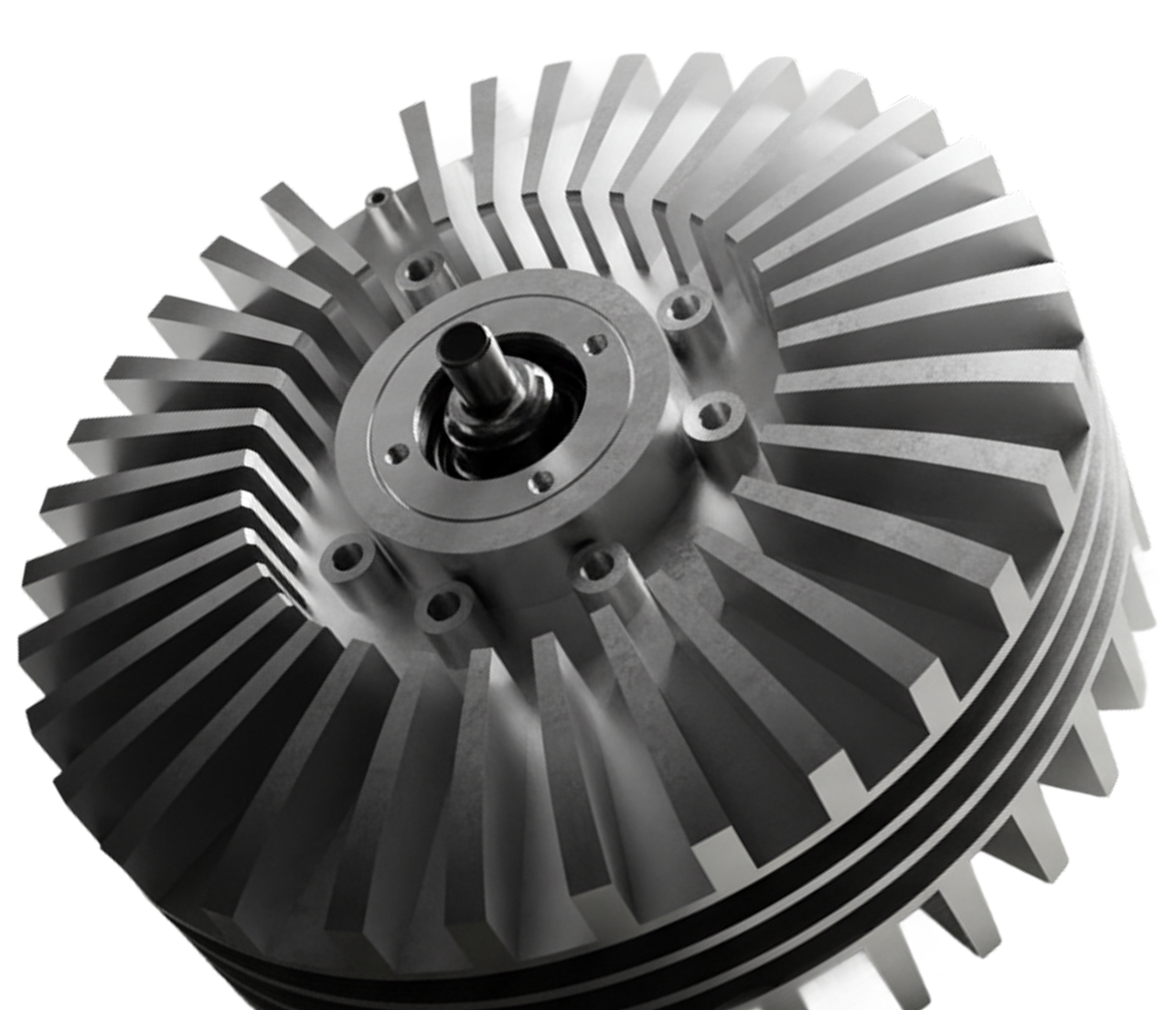

Antarix-AF-58
Antarix AF-58
Specifications
Applications:
Electric Scooters, Bikes, L-5 3W, Industrial Application
Technical Specifications
Motor type:
Axial Flux PMSM
|
|
|
|---|---|
|
Rated Voltage (V DC)
|
72
|
|
Rated Power (kW)
|
10.5
|
|
Max Speed (RPM)
|
4400
|
|
Rated Torque (Nm)
|
18
|
|
Peak Torque (Nm)
|
60
|
|
Peak Efficiency
|
94%
|
|
Cooling Method
|
Air Cooled
|
|
Mass
|
11 kg
|
|
Insulation
|
Class F
|
|
Sensor Type
|
Hall Sensor / Magnetic Encoder
|
|
IP Rating
|
IP65
|

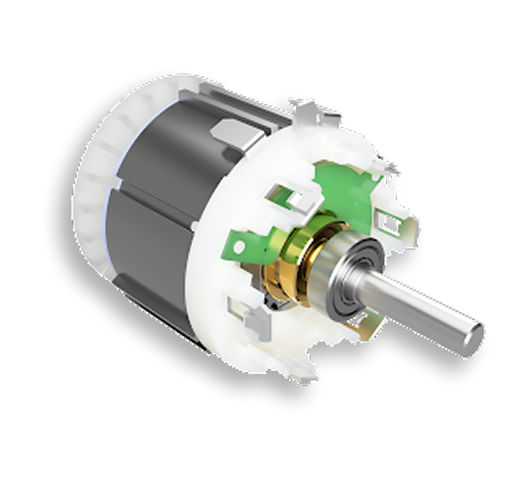

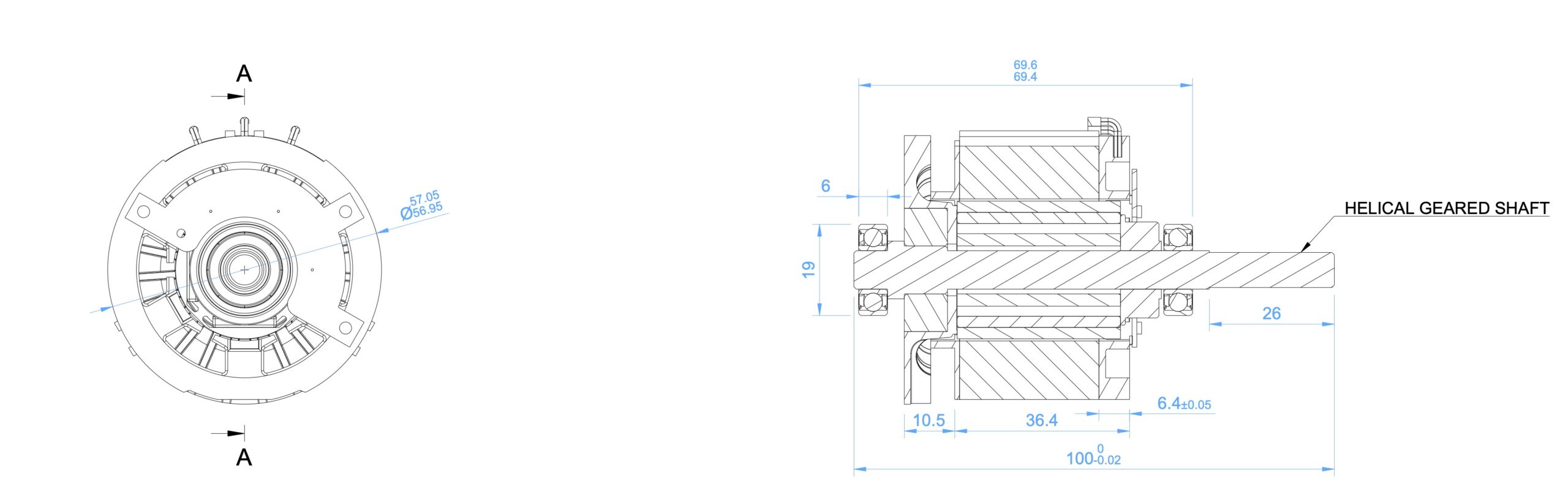

PT-500
PT-500
Specifications
Applications:
Power Tools
Technical Specifications
Motor type:
IPMSM Radial Flux
|
|
|
|---|---|
|
Rated Voltage (V DC)
|
18
|
|
Rated Power (kW)
|
0.05
|
|
Peak Power (kW)
|
0.5
|
|
Max Speed (RPM)
|
17500
|
|
Rated Torque (Nm)
|
0.32
|
|
Peak Torque (Nm)
|
0.5
|
|
Peak Efficiency
|
-
|
|
Cooling Method
|
Air Cooled
|
|
Mass
|
-
|
|
Insulation
|
Class F
|
|
Sensor Type
|
Hall Sensor / Magnetic Encoder
|
|
IP Rating
|
-
|
